Meeting Room Tech Checklist: Get Every Meeting Right

Every reliable meeting room needs five things: a display, a camera, microphones, speakers, and a network that does not flinch under pressure. Add a room booking panel and you have the minimum viable setup. Everything else is a bonus.

Here is your printable checklist, grouped by room size.

Huddle room (2–4 seats)

Medium room (5–10 seats)

Large/boardroom (10+ seats)

Audio is the one thing remote participants cannot forgive. A pixelated video feed is annoying. A muffled, echo-ridden microphone ends the meeting. Prioritize audio, then acoustics, then one-touch joining. Everything else is secondary.

Pro Tip: Before buying anything, walk to the seat farthest from the camera and speak at a normal volume. If you cannot imagine a microphone picking that up clearly, your audio plan needs rethinking.

Table of Contents

What AV hardware does each room size actually need?

A reliable conference setup starts with purpose and geometry, then works outward to display, camera, and audio in that order. Skipping that sequence is how you end up with a gorgeous 85" screen and a microphone that only hears the person sitting directly in front of it.

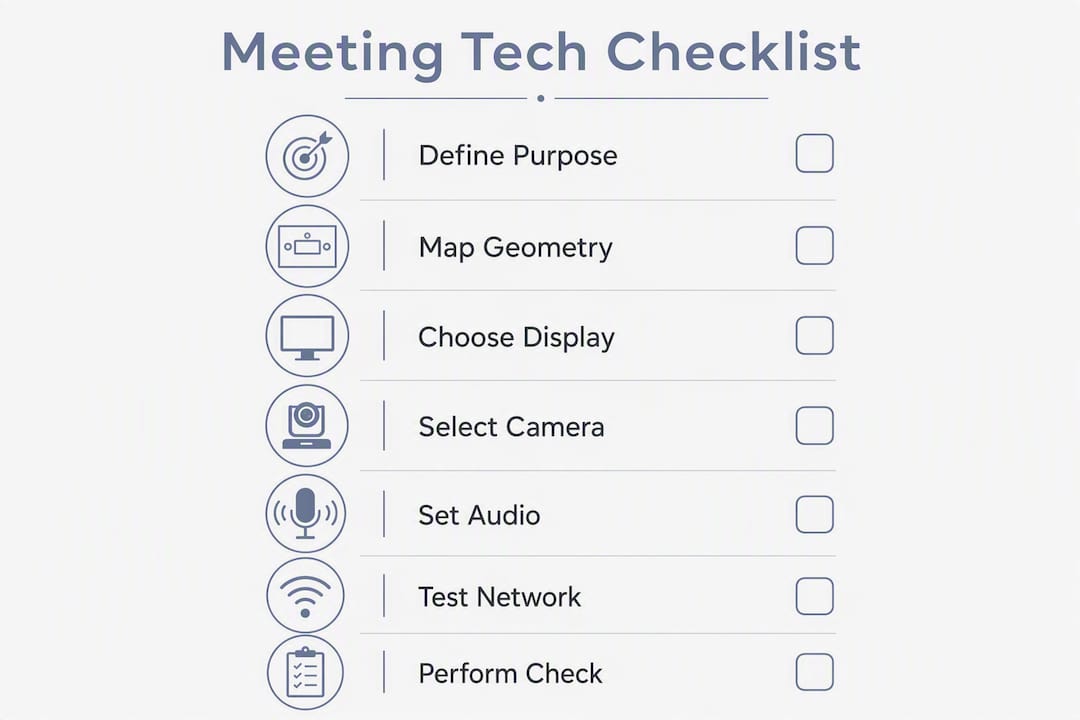

Infographic showing meeting room tech checklist steps

Displays

For huddle rooms, a 55" 4K display at roughly 6–8 feet of viewing distance is the sweet spot. Medium rooms benefit from a 75"–85" panel, or dual 65" screens when the table runs long and people sit at both ends. Large boardrooms often need dual 85"+ displays or a purpose-built video wall so everyone sees remote participants at near-life-size scale.

Mount height matters. The center of the screen should sit at seated eye level (roughly 42"–48" from the floor), not bolted near the ceiling where necks crane and cameras point up nostrils.

Cameras

Modern conference room AV checklists prioritize AI-powered cameras with auto-framing and speaker tracking, and for good reason. A static wide-angle camera in a 12-person boardroom turns remote participants into a Where’s Waldo puzzle. Auto-framing crops to the active speaker; speaker tracking pans to follow them. Both features are now standard on mid-range units like the Logitech Rally Bar and the Neat Bar.

IT specialist inspecting conference room camera

Mount cameras at eye level, just above or below the display. Never on a tripod in the corner unless you enjoy making your remote colleagues feel like they are watching a security feed.

Microphones and speakers

Beamforming microphone arrays outperform single-puck speakerphones in any room with more than four seats. A ceiling mic or tabletop array using beamforming technology can map coverage zones and suppress noise from outside those zones. The rough rule: one microphone coverage zone per 8–10 linear feet of table.

For speakers, the goal is clarity at conversational volume without feedback. Ceiling or in-wall speakers distribute sound evenly. A soundbar works fine in a huddle room but struggles to fill a 20-person boardroom without creating hot spots.

Room size Display Camera Microphone Speaker
Huddle (2–4) 55" 4K Wide-angle, auto-framing Compact beamforming bar Integrated soundbar
Medium (5–10) 75"–85" 4K PTZ with speaker tracking Tabletop or ceiling array Ceiling or in-wall
Large (10+) Dual 85"+ or video wall Panoramic or multi-camera Distributed ceiling array Multi-zone system

Pro Tip: The Logitech Rally Bar, Neat Bar, and Poly Studio series all combine camera, mic, and speaker in a single unit. For huddle and medium rooms, an all-in-one bar cuts installation complexity significantly and plays nicely with Zoom, Teams, and Google Meet out of the box.

How do you handle wired, wireless, and BYOD connections?

Hybrid rooms need a layered network strategy: wired Ethernet for the room system itself, Wi-Fi 7 for the device density that BYOD guests bring, and VLAN segmentation to keep conferencing traffic isolated from the general office network. QoS rules on your switches should prioritize real-time audio and video packets. Without QoS, a large file transfer on the same network can drop a video call mid-sentence.

Wired inputs to keep in every room:

Wireless presentation protocols to support:

Quick troubleshooting checklist for casting failures:

  1. Confirm the presenting device is on the same VLAN as the room system.
  2. Check that the wireless presentation receiver firmware is current.
  3. Restart the display input source (not the whole system) before escalating.
  4. Keep a USB-C-to-HDMI adapter taped to the table as a zero-drama fallback.

Cross-platform interoperability is the quiet killer. A Windows laptop, a MacBook, and an iPad should all be able to share content without a 10-minute driver hunt. Test all three before the room goes live.

How do room booking panels and one-touch joining actually work?

A central room booking system integrated with calendar software and door displays is the single biggest friction-reducer in a shared office. When the panel outside the door shows green (available) or red (occupied) in real time, you eliminate the awkward knock-and-peek. Double-bookings drop. Passive-aggressive sticky notes disappear.

Joan-style room panels are a popular category example: they mount outside the door, sync with Google Calendar or Microsoft Outlook, and let anyone book a room on the spot. The display stays on without a wired power connection in most models, which keeps installation clean.

Inside the room, a touch controller or integrated room appliance handles one-touch joining. The meeting appears on screen at the scheduled time; one tap starts it. No fumbling with laptop cables, no hunting for the right Zoom link. Barco ClickShare covers the wireless presentation side of this workflow, letting guests share content from any device without app installs.

Awaio, as a meeting-room technology curation resource, consistently highlights that the rooms people actually enjoy using share one trait: the technology disappears. You walk in, tap once, and the meeting starts. Interoperability and a coherent join workflow reduce confusion far more reliably than stacking more devices.

Pro Tip: Assign a named owner for each room’s technology. “Everyone is responsible” means no one is. One person owns firmware updates, adapter restocking, and the weekly 5-minute tech check.

What cables, power gear, and accessories should you keep on hand?

Think of the adapter kit as insurance. The one time you do not have a USB-C-to-HDMI dongle is the one time the CEO’s MacBook needs it.

Core cable and adapter kit per room:

Power planning:

  1. Run a dedicated 20-amp circuit for large display and AV rack.
  2. Use PoE+ switches to power room panels, cameras, and access points without separate power adapters.
  3. Install a surge protector on every AV rack, minimum 2,000-joule rating.
  4. Add a UPS (uninterruptible power supply) in rooms where a mid-meeting power blip would be catastrophic.

Keep a labeled “spare kit” box in or near each room: spare HDMI cable, USB-C adapter, AA batteries for the remote, and a printed one-page troubleshooting guide. Label every cable path and document where the service access points are. Future-you (or your facilities team) will be grateful.

Does room design actually affect how well the tech performs?

Absolutely, and this is the part most checklists skip. You can install a $3,000 microphone array and still get terrible audio if the room sounds like a bathroom. Hard parallel walls create flutter echo; glass surfaces reflect sound unpredictably.

Acoustic treatment and strategic lighting are as critical as the hardware itself. Acoustic panels on the wall behind the camera and on the ceiling above the table absorb mid-frequency reflections. Carpet or area rugs handle low-frequency buildup. Even adding a soft-furnishing element like upholstered chairs makes a measurable difference in microphone clarity.

Acoustic treatment can significantly increase information retention in meetings. When participants can hear clearly without straining, cognitive load drops and recall improves. That is not a luxury upgrade; it is a productivity investment.

For lighting, the rule is simple: never backlight a face. Position diffused, high-CRI (90+) LED panels above and in front of participants, not behind them. A color temperature of 4,000K–5,000K renders skin tones accurately for cameras. Avoid mixing warm incandescent with cool fluorescent in the same room; the camera’s white balance cannot reconcile them.

Furniture and sightlines follow the same logic. Every seat should have a direct line of sight to the camera. Round or boat-shaped tables work better than long rectangular ones in medium rooms because they keep everyone within the camera’s field of view. For meeting room layout guidance that maps furniture to camera angles, the principles are consistent regardless of room size.

Colleagues in well-lit meeting room with camera sightlines

Pro Tip: During acceptance testing, sit in every seat and take a photo toward the camera. If you look like you are in witness protection, the lighting or camera angle needs adjustment.

What does a pre-meeting tech check look like?

Run this script before any important meeting. It takes under three minutes.

  1. One-touch join test: Tap the room controller and confirm the call connects within 10 seconds.
  2. Camera check: Verify the correct camera is selected and auto-framing activates when you move.
  3. Microphone check: Speak from the farthest seat. Confirm the remote-side audio meter responds.
  4. Speaker check: Play a short audio clip and confirm volume is audible at all seats without feedback.
  5. Content sharing test: Share a slide from a laptop via both wired HDMI and wireless casting. Confirm both work.

Routine maintenance cadence:

For hybrid meeting best practices that go beyond the tech check, pairing a solid test script with clear participant norms is what keeps meetings from derailing.

Pro Tip: Keep a simple paper log inside each room (or a shared digital doc) where anyone can note a tech issue in 10 seconds. “Mic echo, Tuesday 10 AM” is infinitely more useful than a vague IT ticket filed three days later.

How do you choose hardware and plan a budget by room size?

Start with six questions: What problem are you actually solving? Which spaces and users will use the room? How much automation do you need? How will you ensure interoperability? Who in IT will support it? How will it scale? Answer those before opening a single product page.

Category Best for Platform compatibility Install complexity User experience Audio performance
Entry-level all-in-one bar Huddle rooms, 2–4 seats Zoom, Teams, Meet (USB) Low, plug-and-play Good, BYOD-friendly Integrated mic/speaker, limited range
Mid-range room system Medium rooms, 5–10 seats Zoom, Teams, Meet (certified) Medium, some cabling Excellent, one-touch join Beamforming array, 15-ft coverage
Premium integrated platform Large/boardroom, 10+ seats All major platforms, SIP High, AV integrator needed Full automation, remote management Distributed ceiling array, full room

Budget bands vary by market and vendor, but the general shape holds: huddle rooms run lean, medium rooms are where most of the investment goes, and large rooms require professional installation. Prioritize audio and network in every tier. A cheap camera is forgivable; a cheap microphone is not.

Pilot checklist before rolling out across multiple rooms:

Your printable room-mapping template and checklist

Copy this into a shared doc, print it, and hand it to your facilities team.

One-page acceptance checklist:

Room-mapping template instructions:

  1. Draw a top-down sketch of the room (or use a simple grid).
  2. Mark each seat position and number it.
  3. Draw the camera field of view as a cone from the mounting point.
  4. Mark the microphone coverage zone(s) with a radius from each unit.
  5. Note cable entry points and service access panels.
  6. Record the farthest seat’s distance from the camera and microphone.
  7. Distribute the completed map to facilities staff and the IT owner for that room.

What happens when the tech fails mid-meeting?

Tech fails. It is not a question of if; it is when. Every room needs a backup plan that does not require a computer science degree to execute.

Post a laminated card in every room with the following:

The dial-in number is the most underused backup in corporate AV. It costs nothing to include in every calendar invite and saves the meeting when the room system decides to reboot itself at 9:01 AM.

Key Takeaways

A well-equipped meeting room starts with audio, acoustics, and a reliable network; everything else supports those three foundations.

Point Details
Audio comes first Remote participants forgive bad video; they cannot forgive bad audio. Invest in beamforming mics before upgrading the camera.
Map the farthest seat Every microphone and camera decision should be validated from the seat with the worst position in the room.
Network before gadgets VLAN segmentation and QoS for conferencing traffic prevent dropped calls more reliably than any hardware upgrade.
One-touch joining reduces friction Calendar-integrated room panels and a single-tap join flow save more meeting time than any premium device.
Test before you trust Run the five-step pre-meeting script in every room before it goes live, and repeat it monthly.

The thing nobody tells you about meeting room tech

Here is the honest operational truth: most meeting room failures are not hardware failures. They are sequencing failures. Teams buy the camera before they have sorted the network. They install the display before deciding where the camera goes. They skip acoustic treatment entirely because it is not on any vendor’s product page.

The rooms that work reliably follow a specific order: define the purpose, map the geometry, choose the display, then the camera, then audio, then the platform, then infrastructure, then test. Skipping any step creates a room that looks great in photos and fails in real hybrid meetings.

The second thing nobody says out loud: meeting equity matters. Remote participants in a poorly designed room are not just inconvenienced; they are structurally excluded from the conversation. An AI-powered camera with auto-framing and speaker tracking is not a luxury feature. It is what makes a remote colleague feel like they are actually in the room rather than watching a grainy livestream of a table.

At Centro, the meeting rooms are designed with this sequence in mind from day one. The result is that 68% of members report better concentration and the tech genuinely disappears into the background, which is exactly what it should do.

The last thing: do not underestimate the maintenance load. A room that works perfectly on day one will drift. Firmware updates, adapter attrition, and calendar sync glitches are slow and invisible until they are not. Assign an owner, build a monthly check into someone’s calendar, and keep the spare kit stocked. That is the unglamorous part of conference room technology that separates the rooms people fight to book from the ones they avoid.

Useful sources to consult when planning your setup

A short list of references worth bookmarking before you write a single purchase order.

Always verify platform certification (Zoom Rooms, Microsoft Teams Rooms, Google Meet Hardware) and firmware update policy directly with the vendor before purchasing. Certifications change, and a device that was certified last year may have lost it after a platform update.
